PRODUCT OVERVIEW
DESCRIPTION

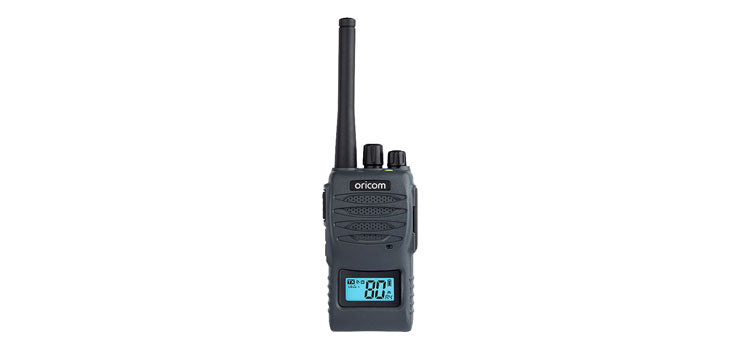

The Oricom UHF5400 CB transceiver is robust, powerful, benefit rich and priced for everyday use with quality features designed to optimise performance under all conditions, this radio is backed by Oricom’s 3 year Warranty.
The UHF5400 transceiver also includes a unique socket to ensure that accessories are firmly secured at all times for interruption free communication.

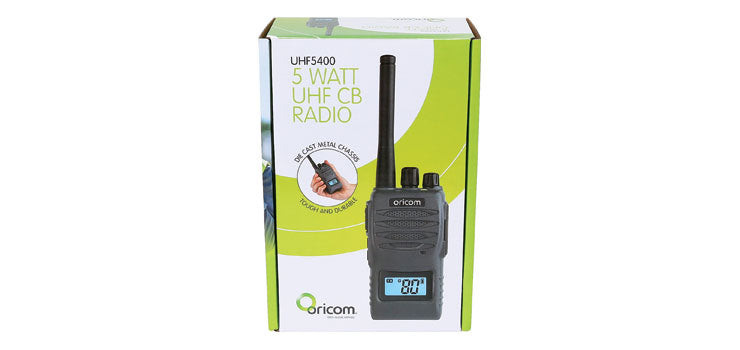

Package Includes:
1 x UHF CB Radio
1 x Antenna
1 x AC Adaptor
1 x 12V Adaptor
1 x Rechargeable Li-Ion battery
Features
- 5/1-watt RF power
- Heavy duty die cast metal chassis
- 80 Narrowband channels*
- 38 CTCSS & 104 DCS Privacy codes
- Duplex
- Rugged construction
- Channel scan (instant/memory/priority)
- Backlit LCD display
- Rotary volume control
- Signal monitoring
- Keypad lock
- Calling tone
- Power save mode
- Removable flexible antenna
- 2.5mm jack for optional headset or speaker mic
- Technical Specifications
- Compliance: AS/NZS 4365:2011 and NZS2772.1
- Frequency Range TX/RX: 476.425 - 477.4125MHz
- Number of Channels: 80
- Channel Spacing TX/RX: 12.5K
- Channel Spacing RX: 12.5K
- Operating Modes: Simplex/duplex
- Scanning Speed: 125MSC/channel
- Antenna Impedance: 50Ω
- Battery Capacity: 1200mAh -9 hrs on high TX power 13hrs on Low TX power (by 5-5-90 work cycle)
- Frequency Stability: 2.5ppm
- Transmitter
- RF Output Power: 5W/1W
- Modulation: FM
- Maximum Deviation: 2.5KHz
- Spurious Emissions: Less than 36 dBm
- TX Frequency Response: + 1 to -6dB/0.3-3KHz
- Audio Signal to Noise Ratio: More than 36dB
- Receiver
- Circuit Type: Direct conversion by single DSP chip
- Intermediate Frequencies: 135KHz
- Sensitivity: Less than -122dBm at 12dB SINAD
- Selectivity: More than 60dB
- Intermodulation Immunity: More than 60dB
- Spurious Response Immunity: More than 60dB
- Audio Signal to Noise Ratio: More than 40dB
- Receive Frequency Response: + 1 to -6dB/0.3-3KHz
- Conducted Spurious Emissions: Less than -57dBm
*Specifications are subject to change without notice.
